Name: RO Water Purification System
Brand: ANGEL Group

Our commercial membranes combine DOW’s proven TFC sheeting with ANGEL’s precision-engineered rolling process, delivering stable permeate flow, efficient water production, and long-term reliability. This advanced pairing of trusted material science and disciplined manufacturing creates a membrane built to perform day after day, even in challenging feedwater conditions. Each component is produced through a consistent, controlled process that reinforces durability, enhances efficiency, and ensures dependable performance where it counts most.

Agriculture growers rely on precise environmental and nutrient management to achieve consistent, high‑quality yields. Water quality is a critical part of that control. Reverse osmosis (RO) purification removes dissolved salts and contaminants, delivering stable, low‑TDS water that supports accurate nutrient formulation, healthier plant growth, and stronger crop performance in hydroponic and controlled‑environment systems.

RO effectively reduces:

Dissolved salts and minerals (TDS)
Hardness such as calcium and magnesium
Chloride, sodium, sulfate, nitrate
Heavy metals like lead, arsenic, chromium
Iron and manganese (after proper pretreatment)
Organic compounds and chemicals
Microorganisms, including bacteria and viruses

Features

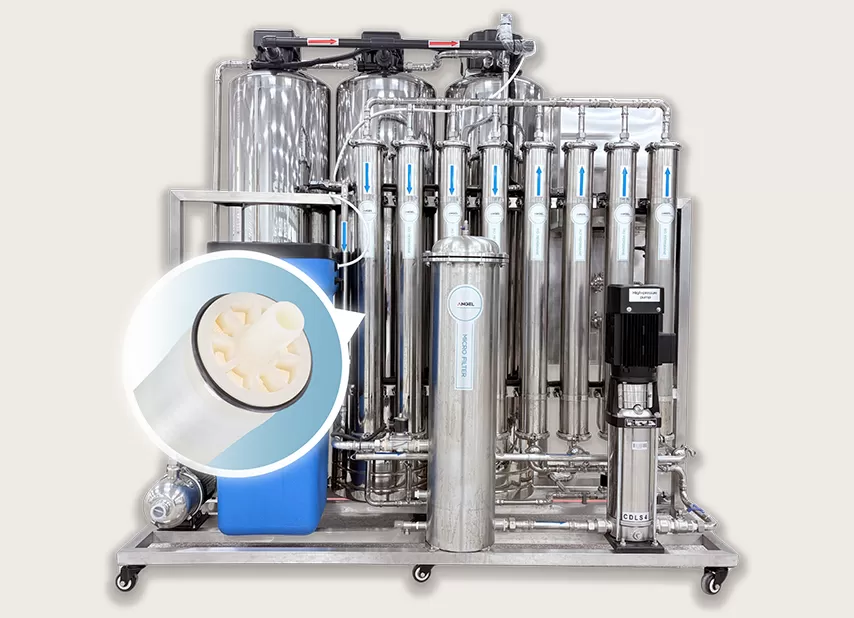

Defined Water Output Options

Four fixed‑capacity models, from 5,000, 10,000, 15,000, and 20,000 GPD, provide consistent performance without modular add‑ons. Each is engineered for reliable performance in a compact design.

Stainless Steel Filter Tank

Shows filter life and filtered-water TDS, making operation simple and clear.

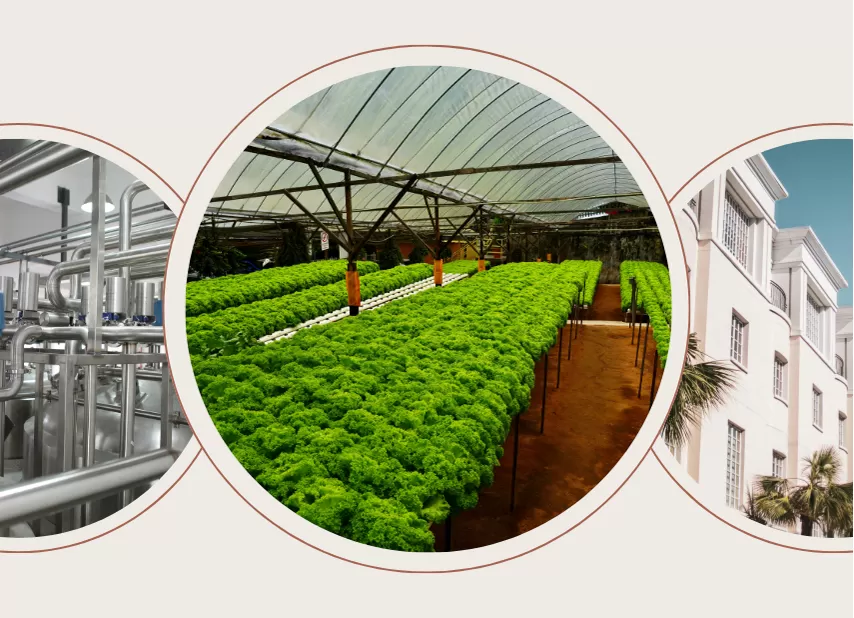

Wide Application Use

Ideal for agriculture, commercial, and light industry requiring high-volume purified water.

Technology

RO System

Achieves up to 99+% reduction of dissolved contaminants, organic compounds, microbial organisms, and ultrafine suspended solids through advanced membrane separation.

Integrated Design

Pre-assembled and easy to install, reducing set-up time and simplifying deployment.

Real-Time Display

Delivers live, side‑by‑side visibility of feed and permeate water, giving operators immediate insight into membrane performance, rejection efficiency, and overall system stability while enabling qui...

Targeted-Filtration

A single system with tailored treatment steps for tap and well water to solve their unique water quality issues.

Efficient Recovery

Achieves up to a 5:1 production‑to‑waste ratio and up to 85%+ recovery, maximizing water savings and output while maintaining membrane‑safe operating conditions for long‑term performance.

Oxygen-Enriched

Adds a controlled dose of ozone to keep irrigation water clean and reduce bacteria buildup in lines and tanks. Extra oxygen in the water supports stronger roots, better nutrient uptake, and overall he...

Security Filter

Removes suspended particles larger than 5 µm, providing a protective barrier that prevents debris, sediment, and other harmful materials from reaching and potentially damaging the RO membrane.

UVC Sterilization

Ensure the purified water stays free of waterborne bacteria, viruses, and protozoa.

Specifications

Model	J2314ROS500C	J2314ROS1000C	J2314ROS1500C	J2314ROS2000C
System Configuration	Integrated Reverse Osmosis Equipment (Main Unit)
Feed Water Source	TDS < 1000
Desalination Rate	99.6+%
Product Water Flow	GPM: 3.5 GPH: 208 GPD: 5,000	GPM: 7 GPH: 416 GPD: 10,000	GPM: 10.5 GPH: 625 GPD: 15,000	GPM: 14 GPH: 833 GPD: 20,000
Temperature	Feed Water Temperature: 41 °F - 113 °F Product Water Temperature: 41 °F - 113 °F
System Pressure	Rated Operating Pressure: 115 psi - 175 psi Inlet Feed Water Pressure: 15 psi - 58 psi
Feed Water Quality Requirements	Color: 15 units (degrees) Turbidity: 1NTU pH: 3-10 Iron: 0.3 mg/L Manganese: 0.1 mg/L Chloride: 250 mg/L
Piping Connection Size	Inlet
	NPT 1''	NPT 1.2''	NPT 1.5''	NPT 1.5''
	Product Water Outlet
	NPT 3/4''	NPT 3/4''	NPT 1.2''	NPT 1.2''
	Concentrate Water Outlet
	NPT 1''	NPT 1''	NPT 1.2''	NPT 1.2''
Voltage	Three‑phase, 240 V, 60Hz
Power	5 hp	5.5 hp	6.8 hp
Dimensions (L x W x H)	75" x 39" x 80"	80" x 41" x 80"	96.5" x 42" x 80"
Weight	1000 lb	1250 lb	1500 lb	1650 lb
Number of RO Membranes	3	6	10	12
System Recovery Rate	up to 80% 4:1
Sterilization Method	UV (Optional)
