Our commercial membranes combine DOW’s proven TFC sheeting with ANGEL’s precision-engineered rolling process, delivering stable permeate flow, efficient water production, and long-term reliability. This advanced pairing of trusted material science and disciplined manufacturing creates a membrane built to perform day after day, even in challenging feedwater conditions. Each component is produced through a consistent, controlled process that reinforces durability, enhances efficiency, and ensures dependable performance where it counts most.
Agriculture growers rely on precise environmental and nutrient management to achieve consistent, high‑quality yields. Water quality is a critical part of that control. Reverse osmosis (RO) purification removes dissolved salts and contaminants, delivering stable, low‑TDS water that supports accurate nutrient formulation, healthier plant growth, and stronger crop performance in hydroponic and controlled‑environment systems.
Applications:
Agriculture, Greenhouses & Hydroponics
Breweries & Beverage Production
Wineries & Distilleries
Cooling Towers
Car Washing
Manufacturing & Industrial
Hospitality & Commercial Facilities
Healthcare & Laboratories
Nurseries

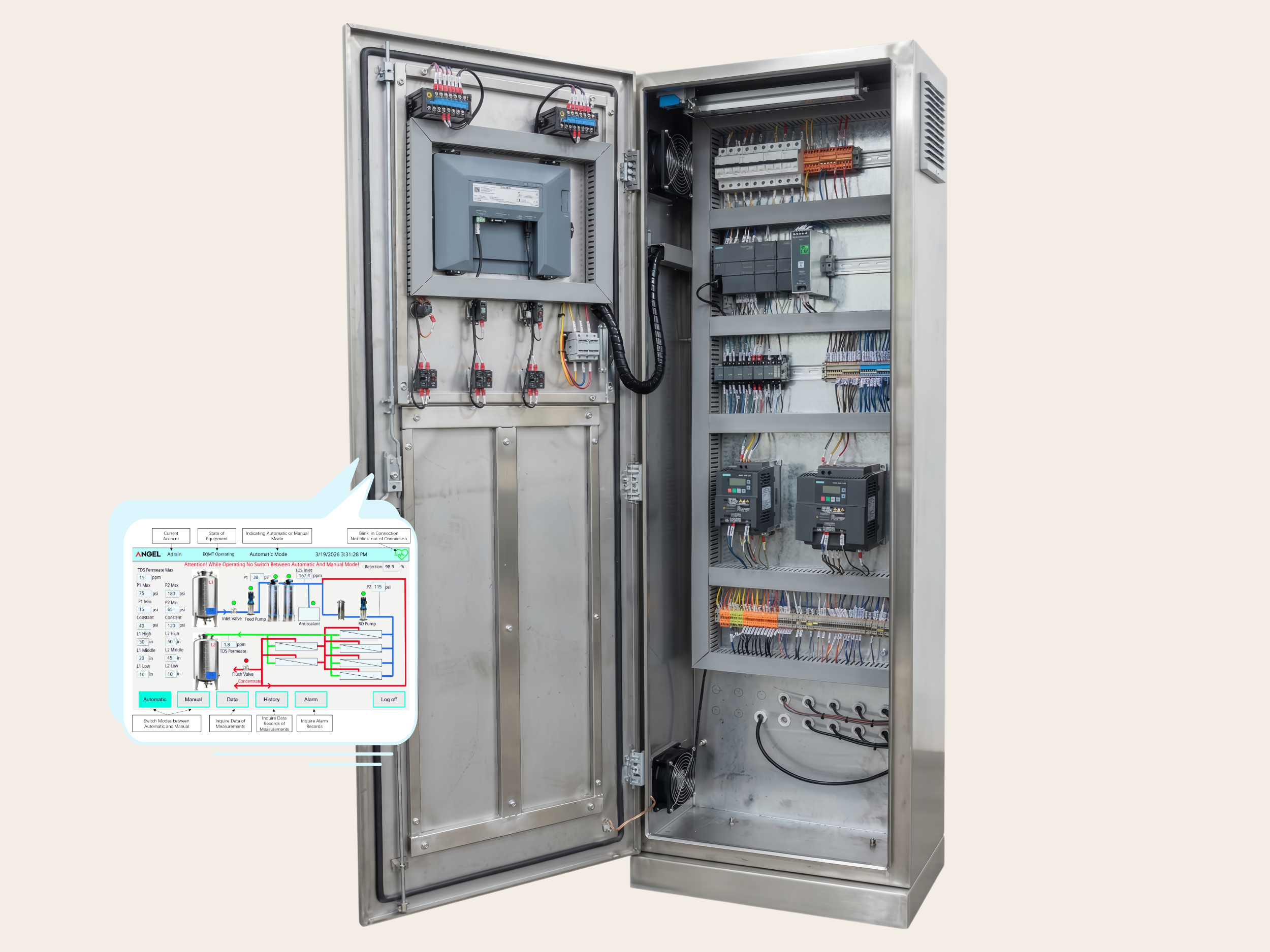

User Friendly System Control
User friendly advanced 9" touch screen SIEMENS Interface for full system control
PLUG AND PLAY - Built for city and well water
4 Plug and Play systems ranging from 5,000, 10,000, 15,000, 20,000 GPD of pure clean, grow-ready filtered water.

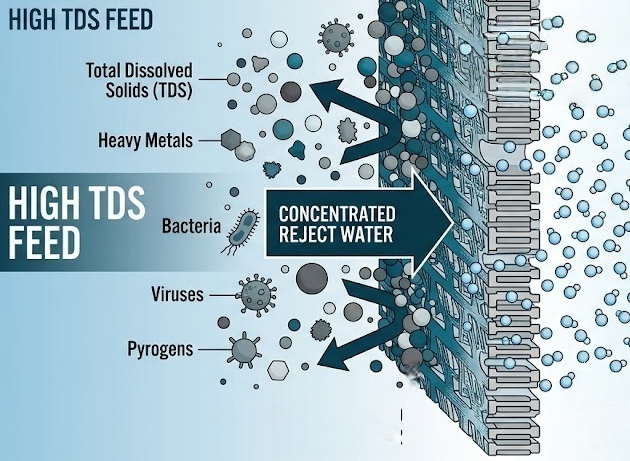

99% Removal
Membrane removes up to 99% of TDS, contaminants, and impurities.
Stainless Steel Filter Tank
Stainless steel corrosion-resistant frame + compact footprint
ANGEL Engineered flexibility
Every ANGEL skid features dual GACC filtration for chlorine/chloramine reduction and offers the flexibility to substitute the first tank with Greensand for advanced iron, manganese, and sulfur treatment. Combined with a dedicated injection port for oxidation, the system delivers dependable, high-performance results on well water applications..

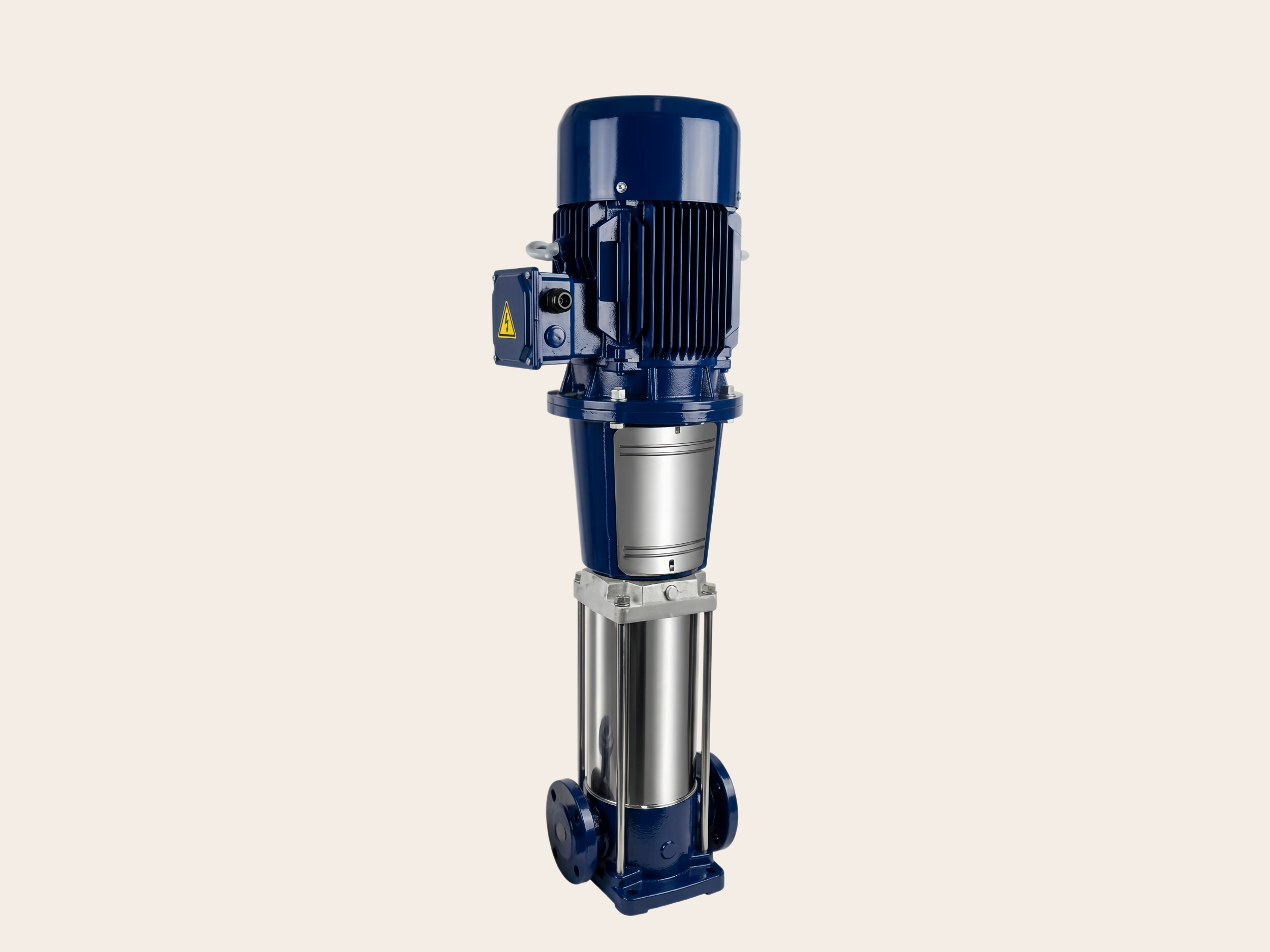

Precision pressure. Maximum eficiency. Zero conpromise.
ANGEL’s VFD-driven multistage pump delivers stable membrane pressure, ultra-quiet performance, and energy-saving operation — engineered for reliable, high-purity RO production.
RO System
Achieves up to 99+% reduction of dissolved contaminants, organic compounds, microbial organisms, and ultrafine suspended solids through advanced membrane separation.
Integrated Design
Pre-assembled and easy to install, reducing set-up time and simplifying deployment.
Real-Time Display
Delivers live, side‑by‑side visibility of feed and permeate water, giving operators immediate insight into membrane performance, rejection efficiency, and overall system stability while enabling qui...
Targeted-Filtration
A single system with tailored treatment steps for tap and well water to solve their unique water quality issues.
Efficient Recovery
Achieves up to a 5:1 production‑to‑waste ratio and up to 85%+ recovery, maximizing water savings and output while maintaining membrane‑safe operating conditions for long‑term performance.
Oxygen-Enriched
Adds a controlled dose of ozone to keep irrigation water clean and reduce bacteria buildup in lines and tanks. Extra oxygen in the water supports stronger roots, better nutrient uptake, and overall he...
Security Filter
Removes suspended particles larger than 5 µm, providing a protective barrier that prevents debris, sediment, and other harmful materials from reaching and potentially damaging the RO membrane.
UVC Sterilization
Ensure the purified water stays free of waterborne bacteria, viruses, and protozoa.
Model | J2314ROS500C | J2314ROS1000C | J2314ROS1500C | J2314ROS2000C |
System Configuration | Integrated Reverse Osmosis Equipment (Main Unit) | |||
Feed Water Source | TDS < 1000 | |||
Desalination Rate | 99.6+% | |||
Product Water Flow | GPM: 3.5 GPH: 208 GPD: 5,000 | GPM: 7 GPH: 416 GPD: 10,000 | GPM: 10.5 GPH: 625 GPD: 15,000 | GPM: 14 GPH: 833 GPD: 20,000 |
Temperature | Feed Water Temperature: 41 °F - 113 °F Product Water Temperature: 41 °F - 113 °F | |||
System Pressure | Rated Operating Pressure: 115 psi - 175 psi
Inlet Feed Water Pressure: 15 psi - 58 psi | |||
Feed Water Quality Requirements | Color: 15 units (degrees) Turbidity: 1NTU pH: 3-10 Iron: 0.3 mg/L Manganese: 0.1 mg/L Chloride: 250 mg/L | |||
Piping Connection Size | Inlet | |||
NPT 1'' | NPT 1.2'' | NPT 1.5'' | NPT 1.5'' | |
Product Water Outlet | ||||
NPT 3/4'' | NPT 3/4'' | NPT 1.2'' | NPT 1.2'' | |
Concentrate Water Outlet | ||||
NPT 1'' | NPT 1'' | NPT 1.2'' | NPT 1.2'' | |
Voltage | Three‑phase, 240 V, 60Hz | |||
Power | 5 hp | 5.5 hp | 6.8 hp | |
Dimensions (L x W x H) | 75" x 39" x 80" | 80" x 41" x 80" | 96.5" x 42" x 80" | |
Weight | 1000 lb | 1250 lb | 1500 lb | 1650 lb |
Number of RO Membranes | 3 | 6 | 10 | 12 |
System Recovery Rate | up to 80% 4:1* | |||
Sterilization Method | UV (Optional) | |||
*Dependant on inlet water quality or chemistry.
